Package contains:

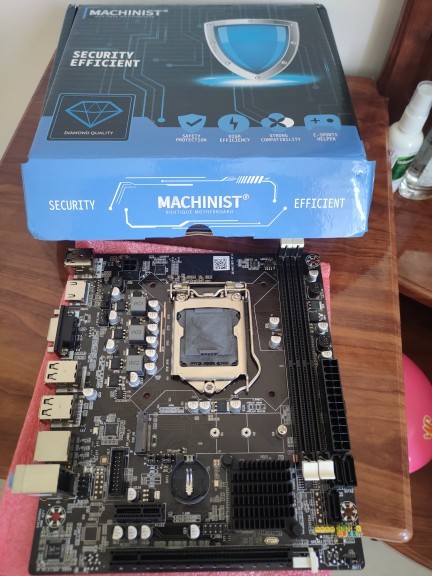

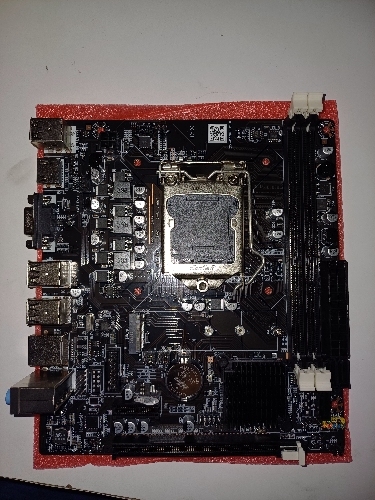

#Main products: MACHINIST H61C motherboard *1 piece;

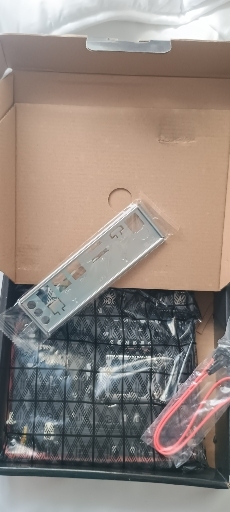

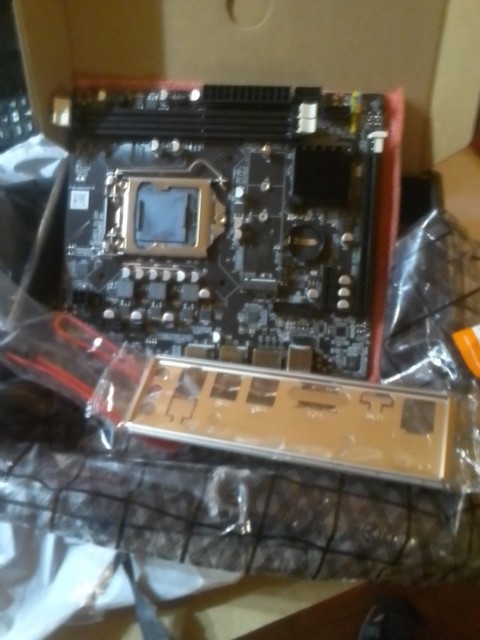

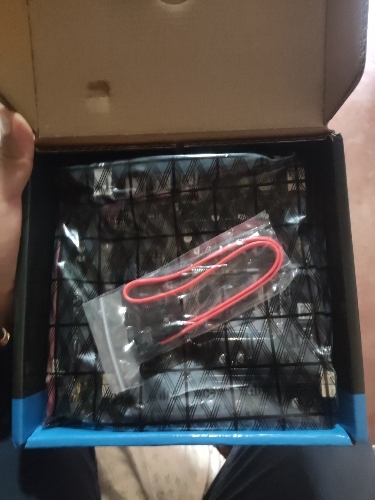

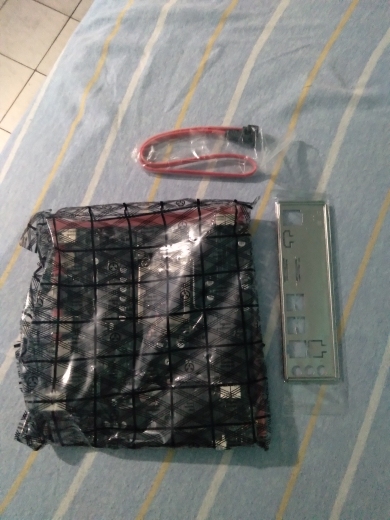

##Bonus accessories: I/O shield, SATA cable.
### They are all packaged after manual testing before sending. If there are any gifts missing, please understand!
Motherboard information:
>>Brand: MACHINIST.
>>Motherboard model: H61C.
>>Processor: Supports Intel LGA 1155-pin series processor.
>> Chipset: H61 chipset.
>>Memory
Technology: Dual Channel DDR3. Support 1333/1600/1866MHz.
Maximum capacity 32GB (16G x 2).
Memory slot: 2*DDR3.
Supported memory types: Only DDR3 desktop memory is supported.
(Note: Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands. Other brands may not be compatible.)
>> Rear I/O
Display interface: supports VGA & HDMI display.
USB interface: 6 USB 2.0;.
Ethernet: 100M network adapter port.
Audio: 1 (mic in, line out, line in).
>> Internal connector
SATA interface: 3 (SATA2.0).
M.2: 1 (NVME/SATA, default sata interface).
PCIe: 1 X16 PCIe and 1 X1 PCIe.
>> Dimensions
Size: 190mm*170mm.
Motherboard weight (including packaging): about 0.7 kg.
Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
| Weight | 20 kg |
|---|---|
| Dimensions | 5 cm |
| Brand Name | MACHINIST |
| Chipset | Intel H61 |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 32 GB |
| Processor compatibility | Intel Core |
| With CPU | No |
| Support Memory Type | DDR3 |
| Number of PCI | 0 |
| Storage Interface Type | SATA |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 1x RJ45 |
| PCI - E standards | PCI – E 2.0 |
| Socket Type | LGA 1155 |
| Special Function | none |
| Usage Scenario | others |
| Origin | Mainland China |
| Number of PCIe x 8 | 1 |
| Number Of Memory Slots | 2 |
| Ports | M.2 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 0 |
| Number of PCIe x 16 | 1 |
| Onboard Connectors & Header | AAFP Connector |
| Memory channel | Double |
| Audio Channels | 5.1 |
| SATA RAID | 0 |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Certification | CE |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 1 |
| Choice | yes |
47 reviews forMACHINIST H61 Motherboard LGA 1155 DDR3 RAM Compatible With Intel Core CPUs 2nd And 3rd Generations Supports M.2 NVME SDD
Add a review
Related products
Tech Accessories
Tech Accessories
Tech Accessories
Tech Accessories
Tech Accessories
Tech Accessories
Tech Accessories
Tech Accessories
L***s–
Good plate, and quick🚚
P***t–
Outstanding motherboard! I used this to replace an older motherboard that i had and the machinist h61 far exceeds my expectations. For a new board it brings pep to older hardware that i previously never seen. Furthermore, i will be a returning customer. Outstanding item and service, a million thanks machinist offical store!!! A+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
C***e–
Excellent motherboard and the second one I purchase.
J***e–
This item arrived in perfect condition no bad pains in the cpu socket. Everything was brand new looking.
T***l–
Works great for my budget build. Smaller than i expected, like an itx but great value.
j***u–
I bought this cause the price at the time was very good. I haven’t used it and don’t need it anymore.
e***n–
Worked first go thank u
a***r–
Arrived fast not long, it worked normally is a more basic plate, hope it has good durability
G***e–
Motherboard I believe it is good, I did not test it, it took 1 month to deliver thanks to the government of love, this mismanagement, ridiculous! I paid a fee of R$ 140,00 because of the love fee. OT @ rivers that made the L. Useless president this squid
M***s–
I liked it very much product DP. Highly recommended. Buy with frked eyes. You won’t regret it in any way.
a***r–
Came pretty quick
m***r–
Great Motherboard
A***o–
It works well.
m***r–
Excellent Motherboard, works perfectly
a***r–
Pros : 1 – well packaged “no bents cpu socket pins”. 2 – the storage controller of this motherboard is sata 3 which is a big plus if you use an ssd because old-school h61 motherboards come with sata 2 controllers. Sata 2 max out at 3 gbit/s where sata 3 double that “6 gbit/s” which is perfect for nowdays sata ssd. And even if you were to use a simple hdd you will still get a little performance bump because of minor performance improvements between sata 2 -> sata 3 standards. 3 – you get an m.2 nvme slot without having to give up a pcie x1 slot. 4- support ddr3 1600mhz
j***s–
Very good recommend
v***a–
It was great but look for the right rams for it
I***r–

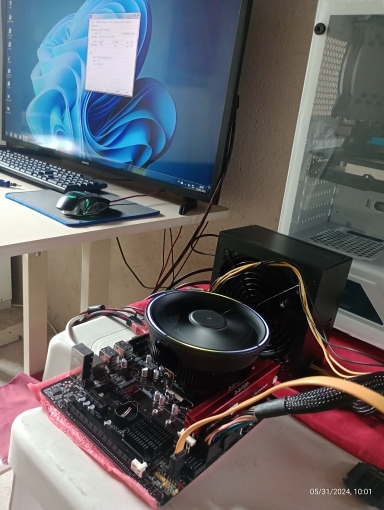

perfectly functional, shipping perfect within the expected timeframe, and the item exceeded my expectations. No startup issues, everything recognized and Windows 11 updated. The NVMe SSD slot works great. Paid little but very convenient compared to what is available even used.
R***k–
a little disappointed… there were problems connecting my Acer Veriton case to this motherboard, the contacts don’t fit. I have 14 pins for connecting the case, but this motherboard does not have such an input/connection. You need to look for an adapter from 14 pins to 10 pins.
W***s–
Very good product, super fast delivery, I tried it and it runs wonderfully with a second-generation i5.
t***s–
Everything came right. I am already using 1 week and until now it is working perfectly. I am using it with a Xeon E3 1230v2 and did not need to update the bios, it is also working with a SSD name of the goldenfir. So far I have nothing to complain about the plate, this one working perfectly.
Customer–
Cpu fan speed cannot be adjusted
K***z–
Excellent, arrived within the date and everything in good condition.
A***O–
Everything came right according to description. Well packed. Sent fast. When installing it back to talk ..
Customer–
I have used several times with no issue connectors are odd locations so pay attention to that but I haven’t had that be an issue yes
Customer–
Fast delivery and exactly what I need… always a pleasure.
K***m–
great item!!
E***t–
Amazing motherboard, everything fit, good size, good quality. Can’t complain because it was 16$ each after discounts. Would be nice if vrms had cooling and m.2 slot is kind of raised, not a big deal for me but might be for others.
f***r–
excellent product, quality tested over time, not the first time I’ve bought it for myself and friends, recommend for purchase
Customer–
I received the plate or Motherboard in its box, well protected and without roturras, in addition in the agreed time, the courier service works correctly and they informed me of each stage of the itinerary .. thank you very much!
j***a–
Simple and well constructed board, that can breathe life to old systems. Does not come with manual, which is a minus, should come with something. Bios configuration sometimes hangs.
Customer–
Excellent
P***s–

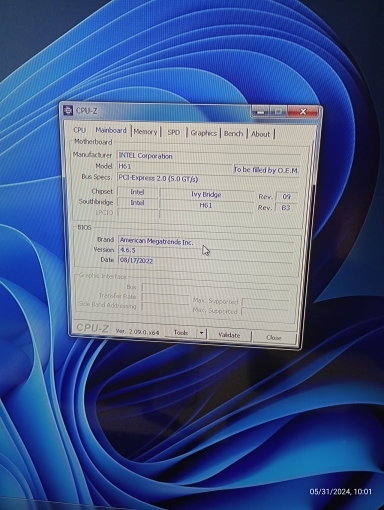

Functioned🤝Thank you very much. In promotion I indicate the cost benefit and very satisfactory. Only the box that is from the machinist because in the CPU-Z informs American Megatrends in short it would be a matter of skin because in practice it ends up being the same thing.
D***a–
An excellent motherboard supports Linux I opened it for testing I did not encounter any malfunction
m***r–
Excellent Motherboard! Worked perfectly well, paired with a 2600k and 16gb of DDR3 ram. Purchased more boards, as the first one worked so well. Machinist is a great brand!
m***r–
works great
Customer–
good came in a few days early making a gaming PC with it
J***k–
Machinist is my favorite chinese motherboard brand, this is a decent h61 board with nvme support out of the box. Paired with a newer i5 3350p (2014) i had lying around, the placement of headers is quite nice, typical american megatrends bios, for the price i have nothing to complain about. Though, i had some untested ddr3 lying around, i could only get a 4gb dimm working, but they may be faulty. Haven’t done any testing yet but you machinist is a great choice, i love their x99 boards. Would recommend.
J***a–
Good product
A***i–
The mother’s payment is good, for a penny, taking another generation for i3, it started without problems! Zibar set for 600 UAH. Mat. Board, most, 8GB operatives and cooler!
L***s–
Great, it all came right, and it came before the scheduled date
O***z–
Works perfect! High quality and well packaged! I recommend this seller!
C***s–
Works really well small fits perfect for a tiny pc
e***e–
The item arrived fast looks in perfect condition not yet tested but for first impressions it is great
K***m–
it works!!!
Customer–
Excellent motherboard, even I thought it was bigger, buy it for an i7 2600K, 2×8 Ram and 256 Gb Nvme
s***o–
It is a good plate, I still did not taste it, but I think it will be fine and at a very good price Seller advice
