Package contains:

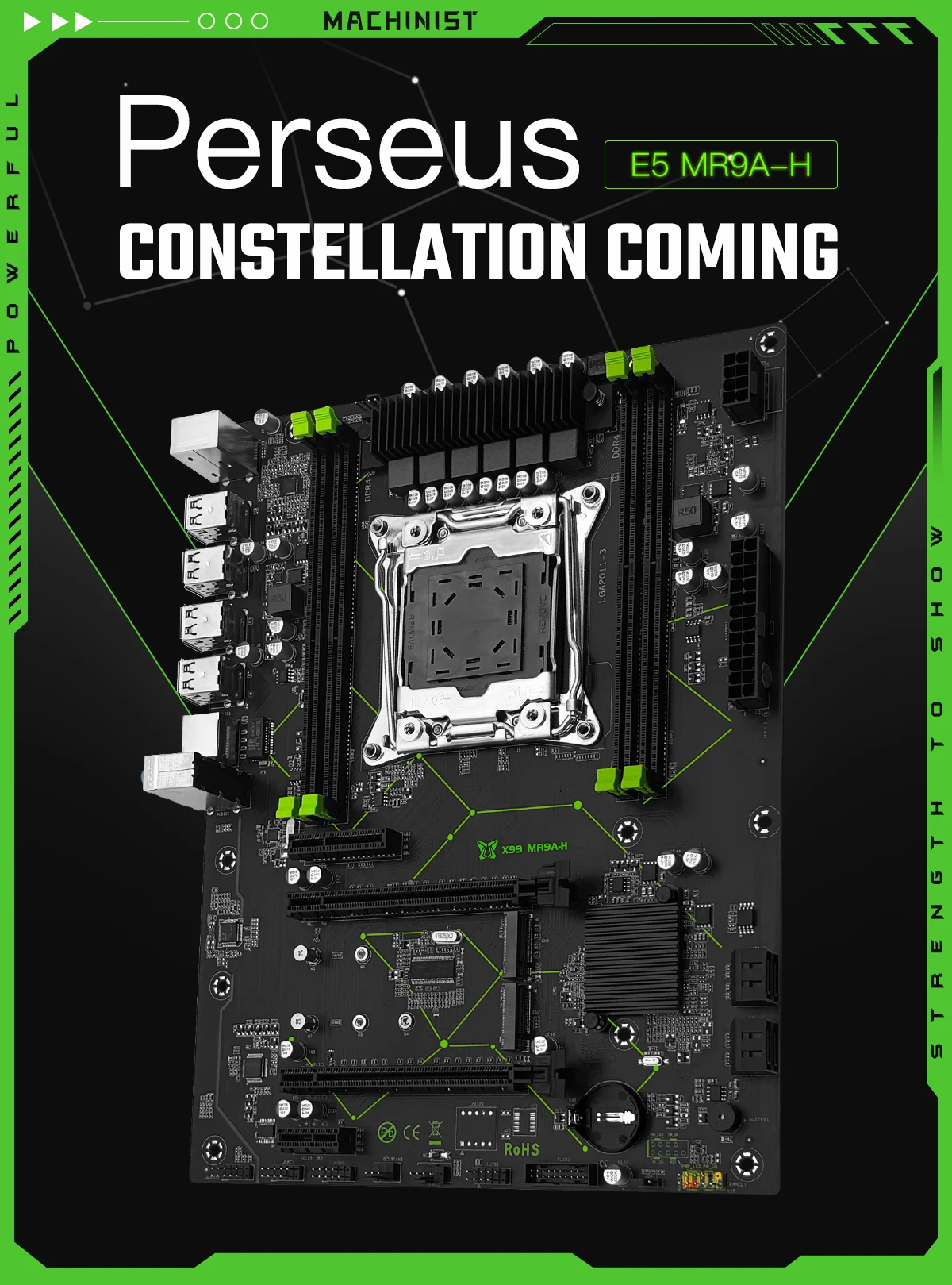

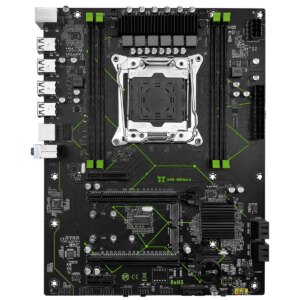

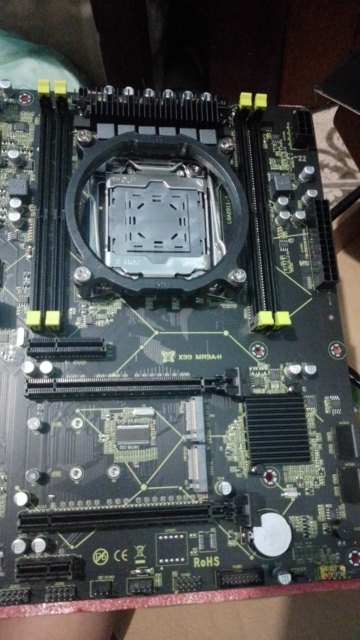

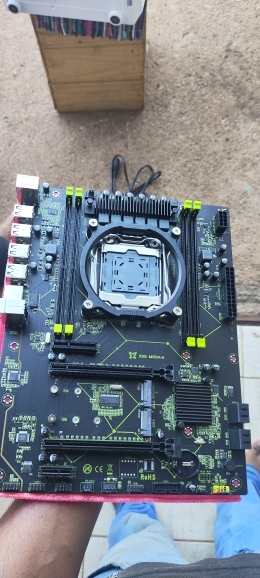

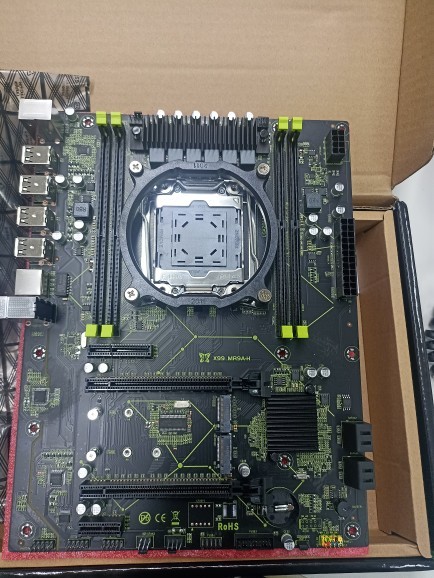

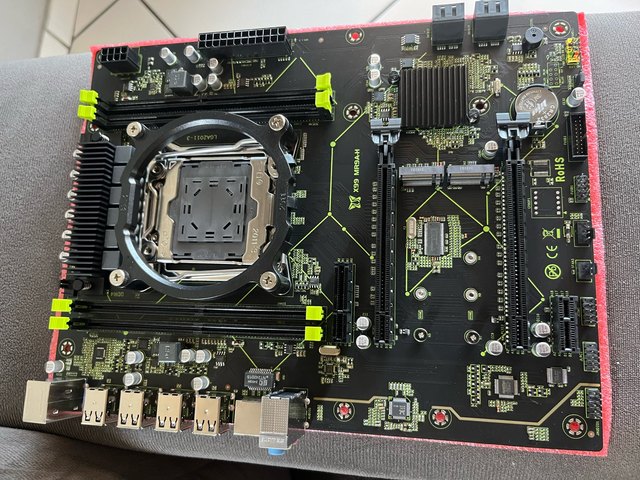

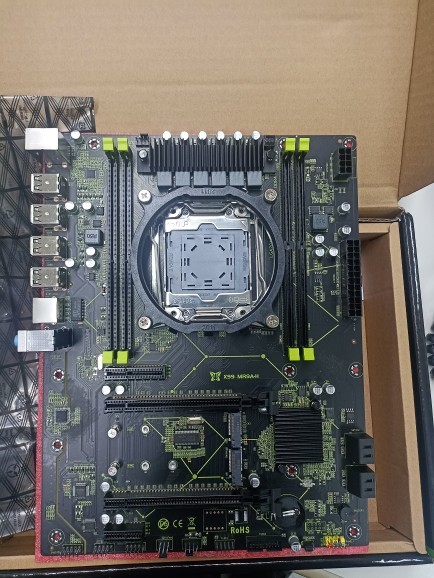

Motherboard: MACHINIST X99 MR9A-H LGA 2011-3 motherboard *1.

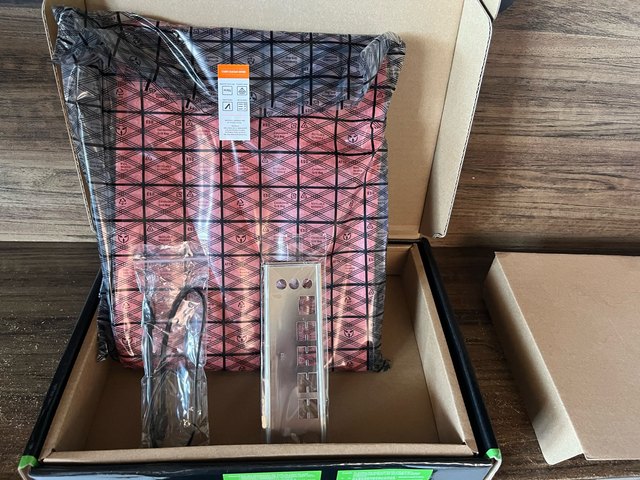

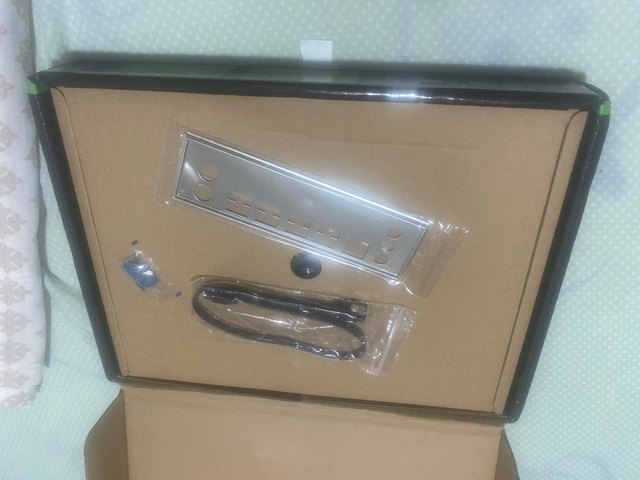

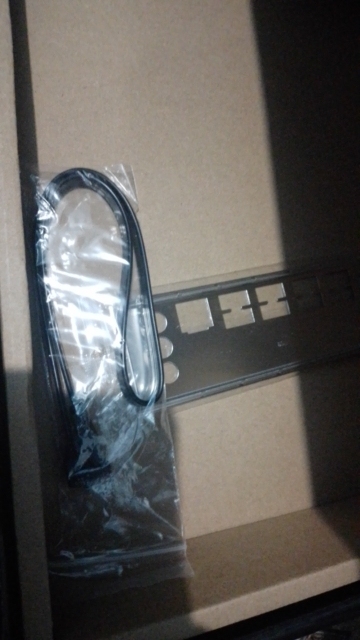

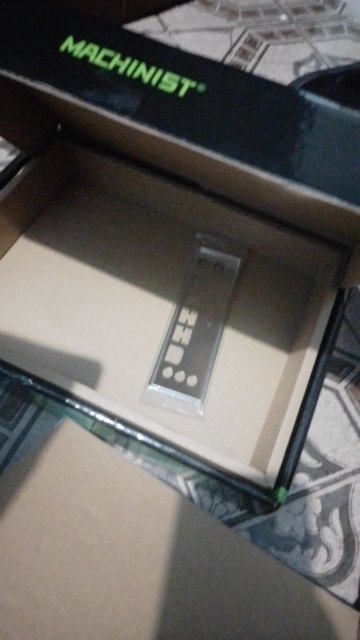

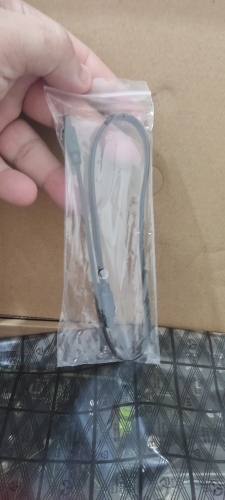

Free accessories: I/O shield *1, SATA cable *1.
(>>Everything is manually tested before being packaged before sending. Please understand if there are any gifts missing!)
Motherboard information:
>>Brand:MACHINIST.

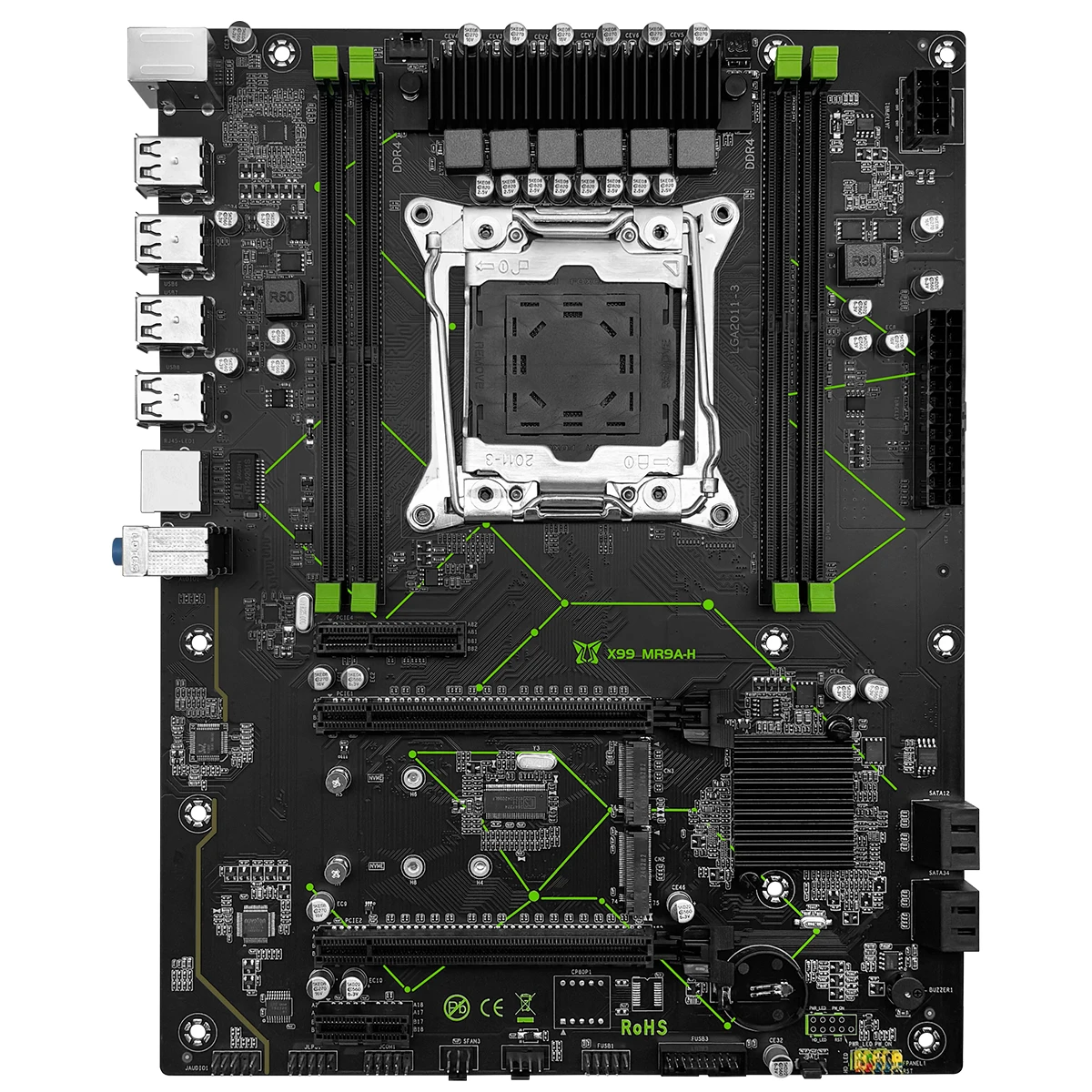

>>Motherboard model: X99 MR9A-H.
>>Processor: Supports Intel LGA 2011-3-pin series processors.
>> Chipset: HM55 Chipset.

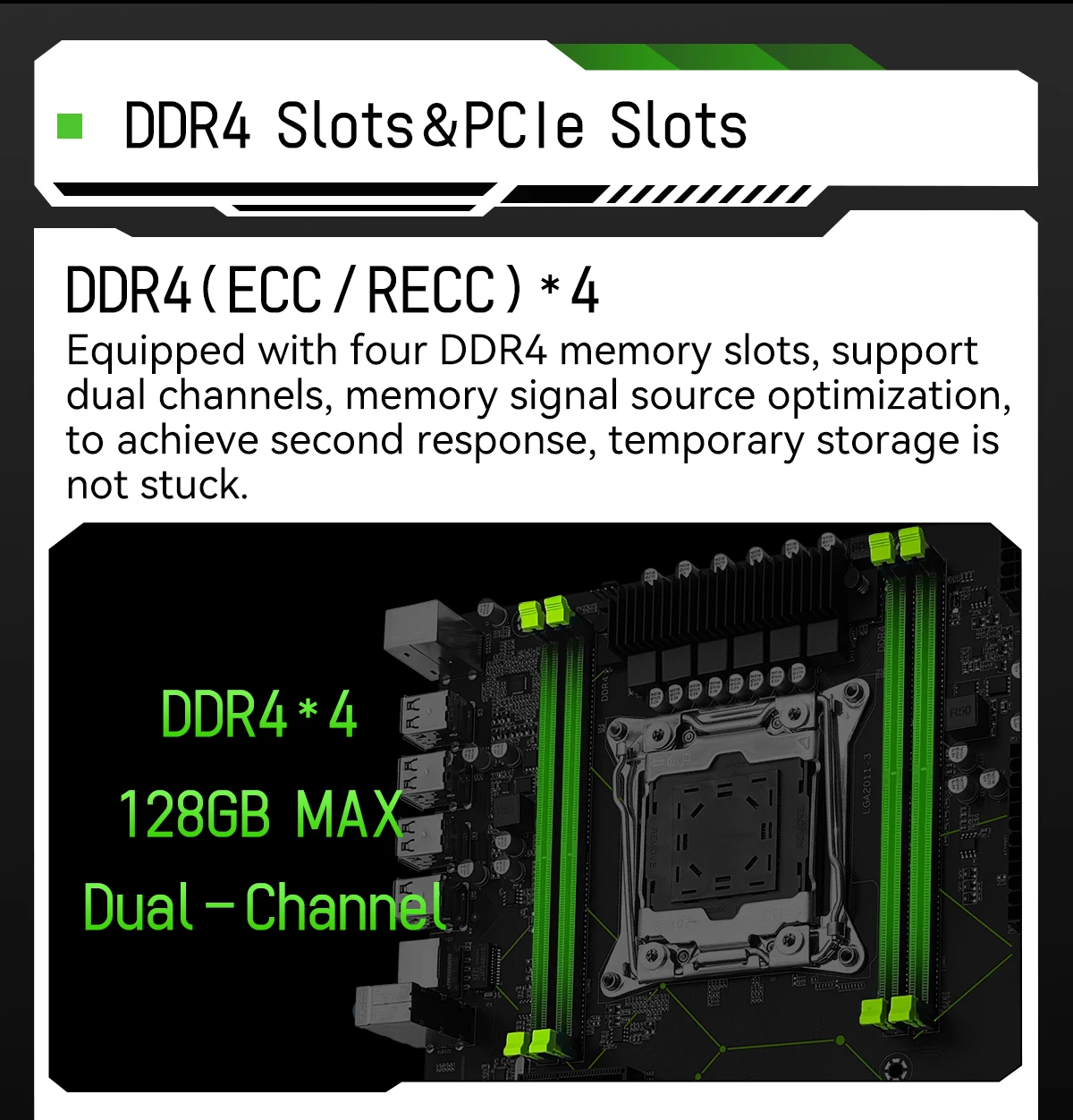

>>Memory
Technology: Dual Channel DDR4. Support 2133/2400/2666/3200MHZ.
Maximum capacity 128GB (32G x 4).
Memory slot: 4*288 PIN DDR4.
Supported memory types: Memory types support DDR4 desktop and server memory.
(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.)

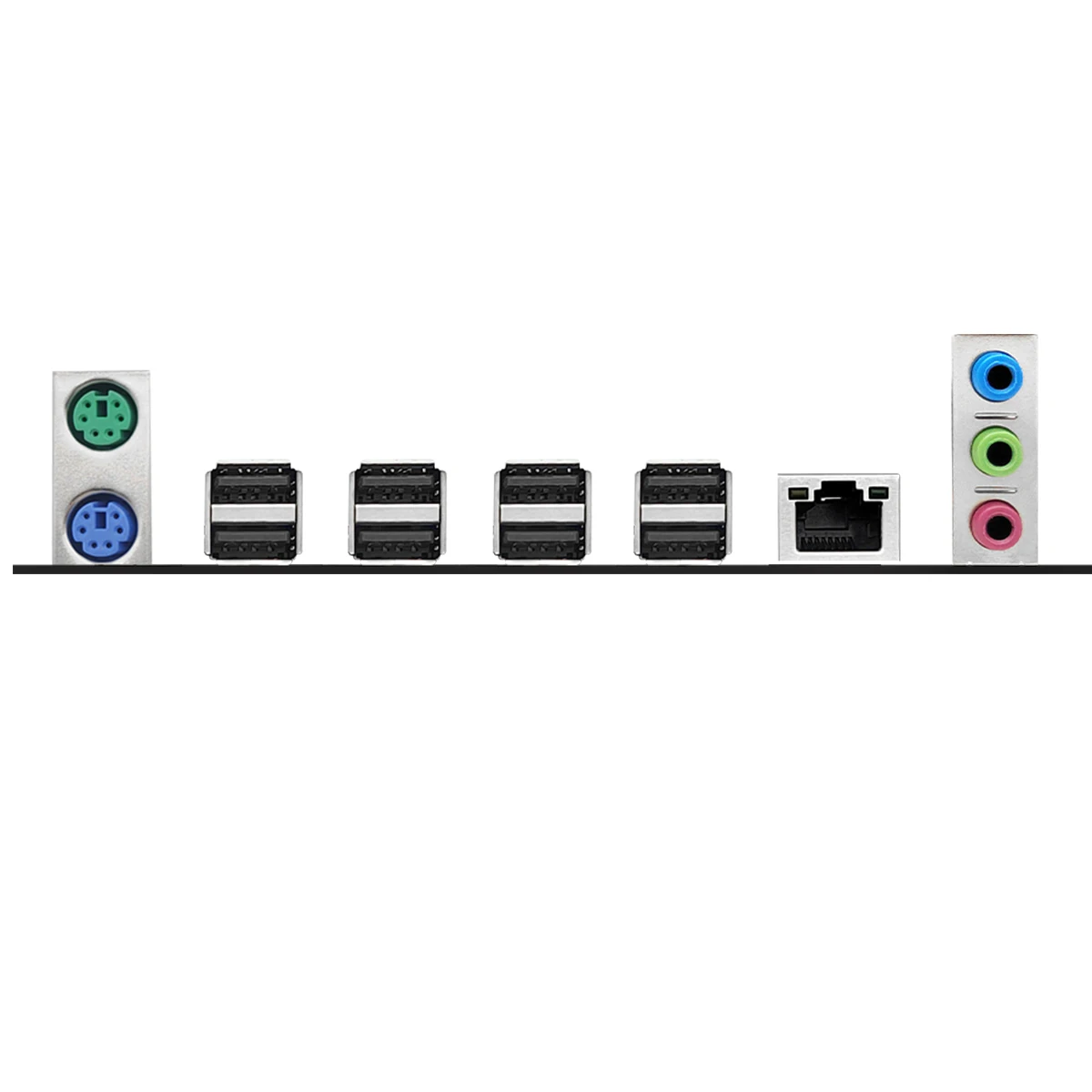

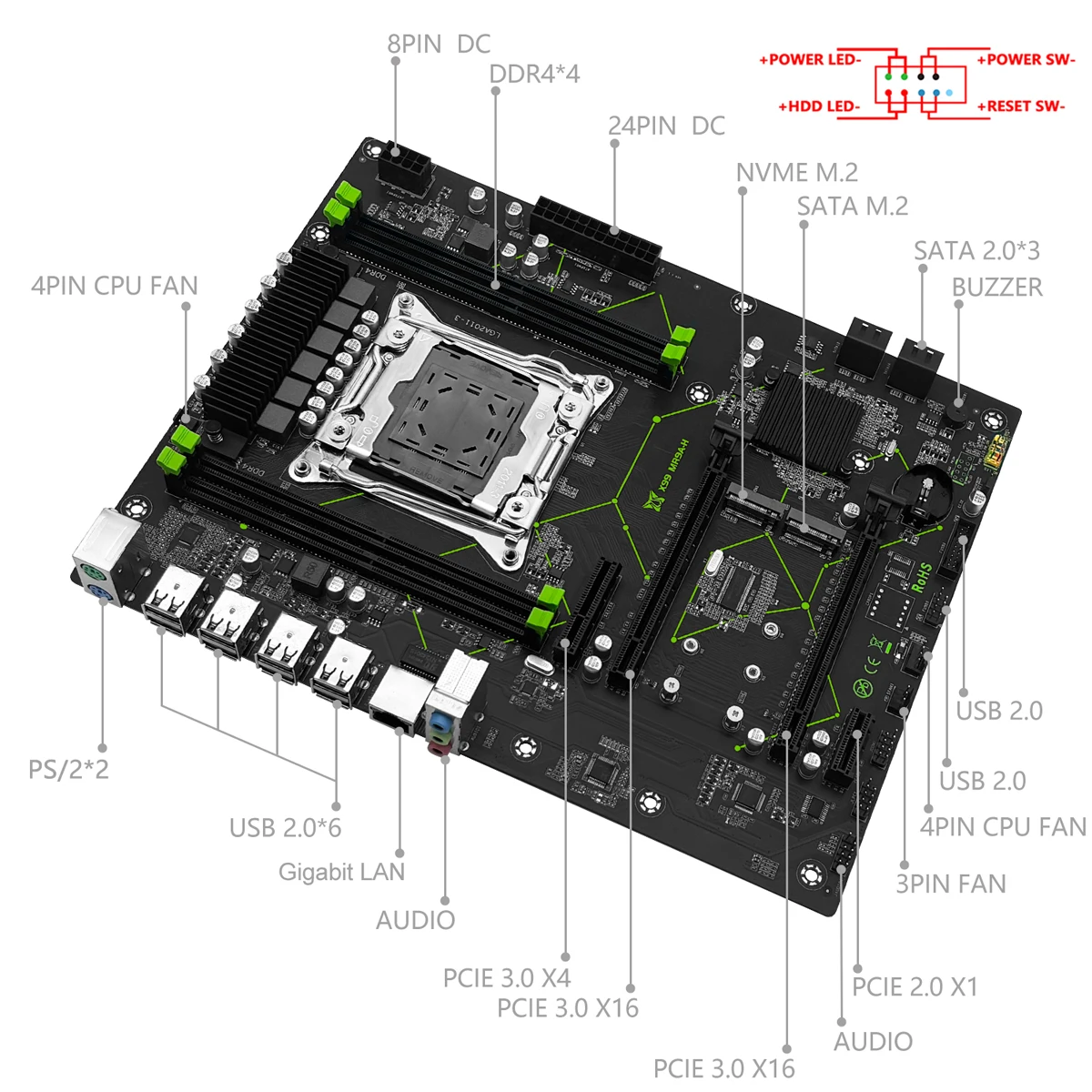

>> Post I/O
PS/2: 1 KB interface + 1 MS interface.

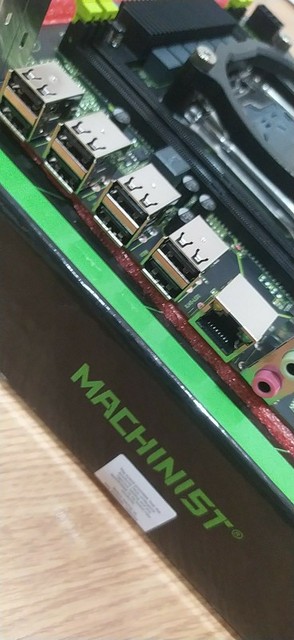

USB interface: 8 USB2.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
>>Internal connector

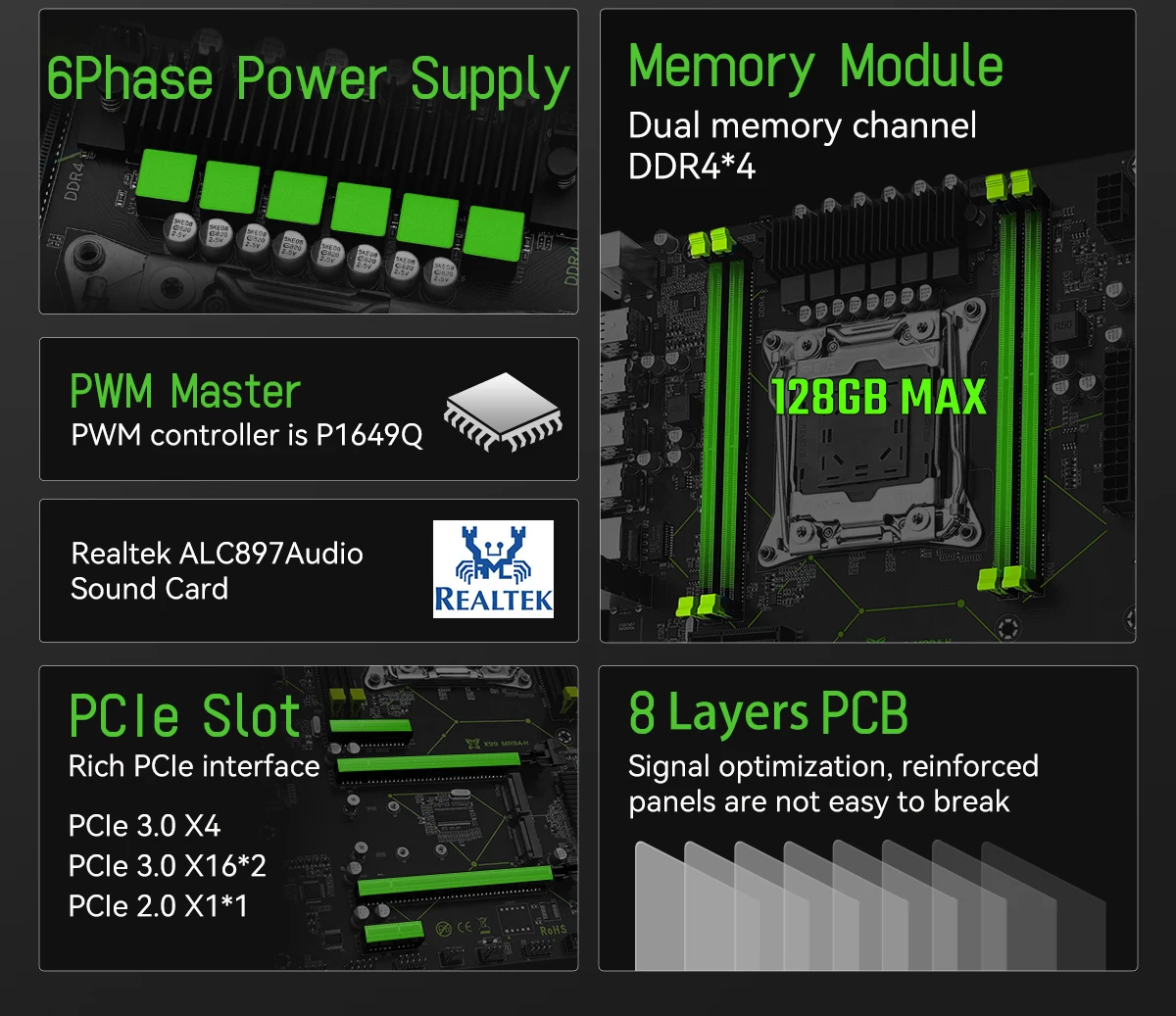

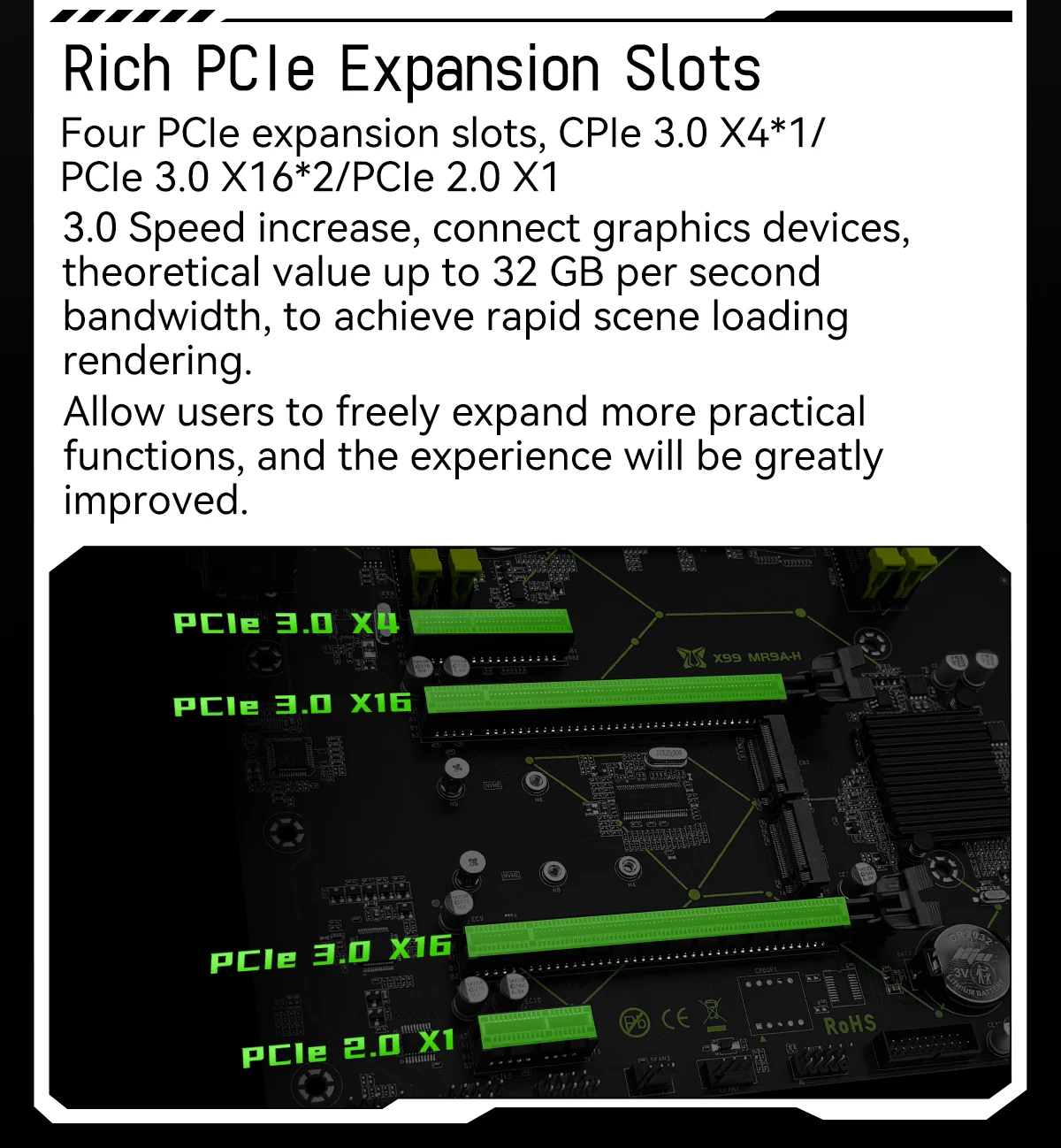

PCIe: 2 PCIe 16x, 1 PCIe 4x, 1 PCIe 1x.
F_PANEL: 1 2x5Pin pin.
SATA ports: 4 (4 SATA2.0);
1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

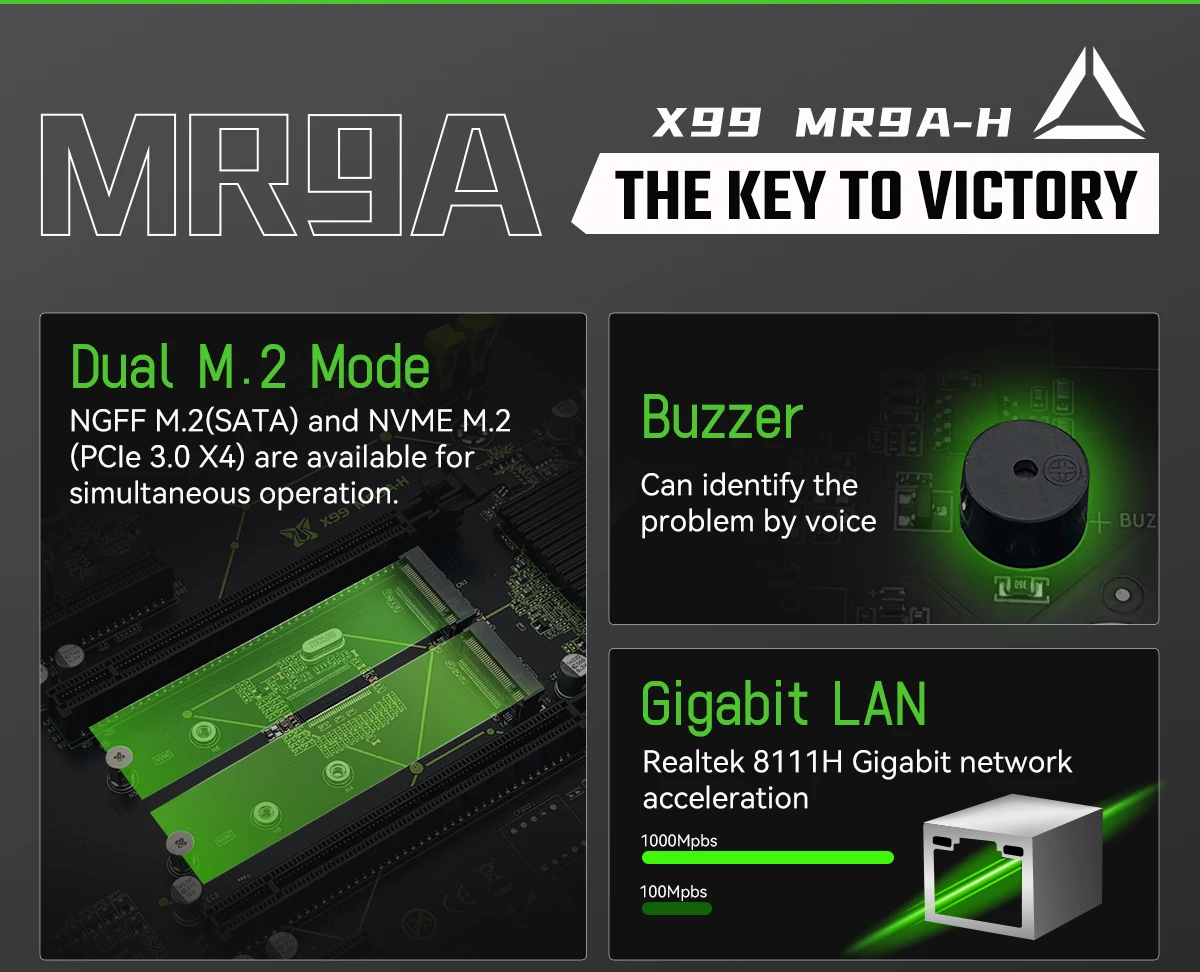

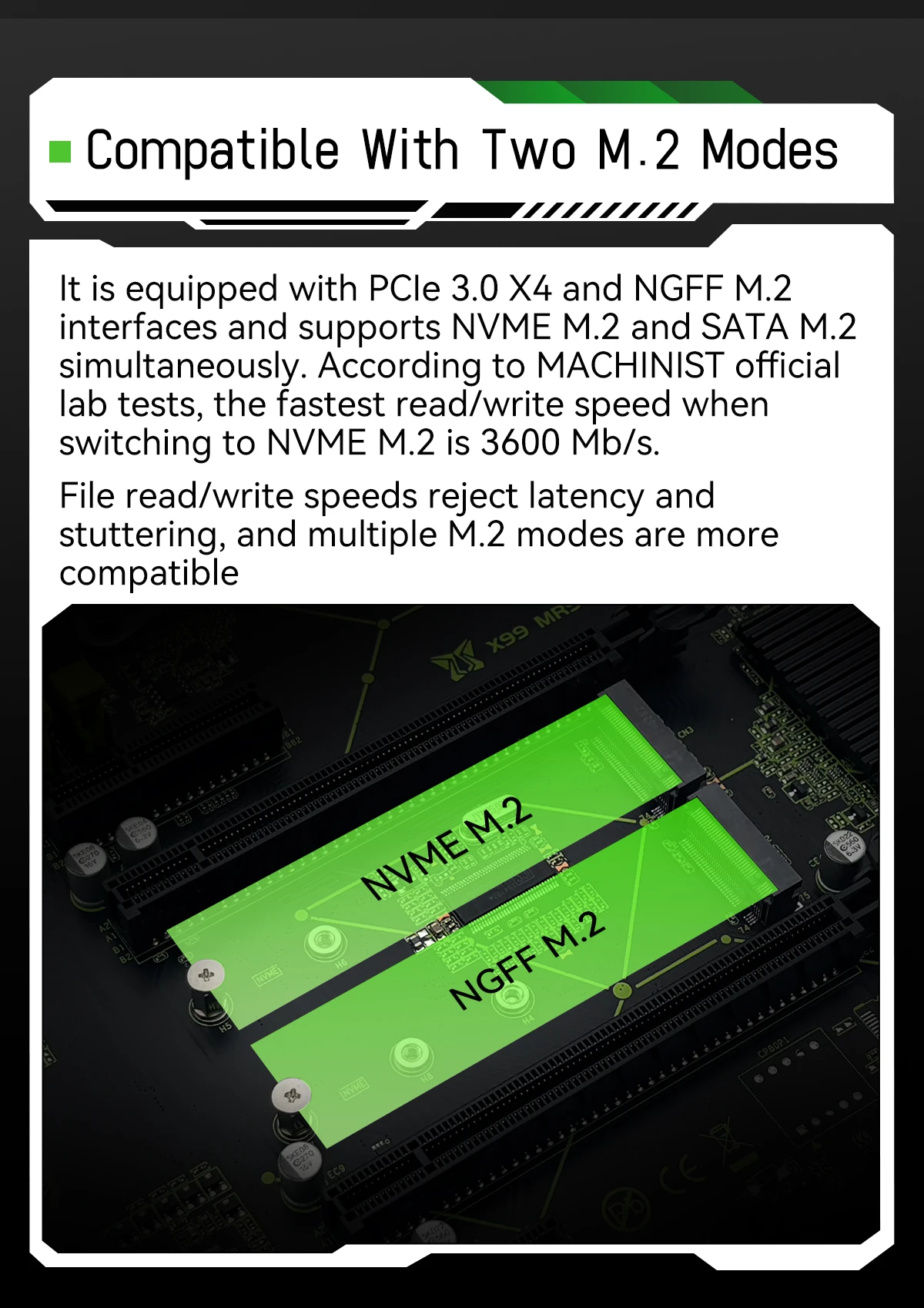

M.2 interface: 1 PCIE, 1 NGFF.

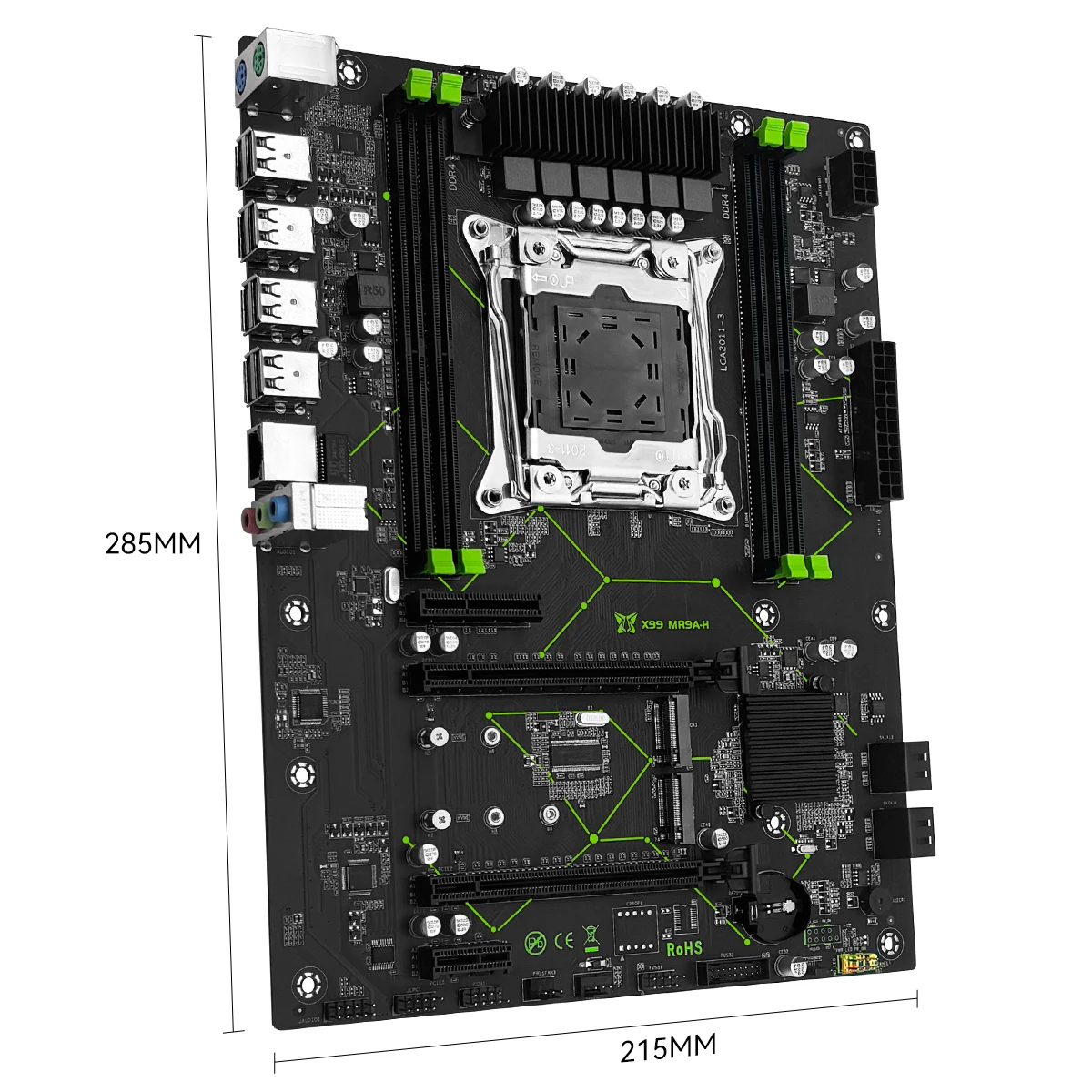

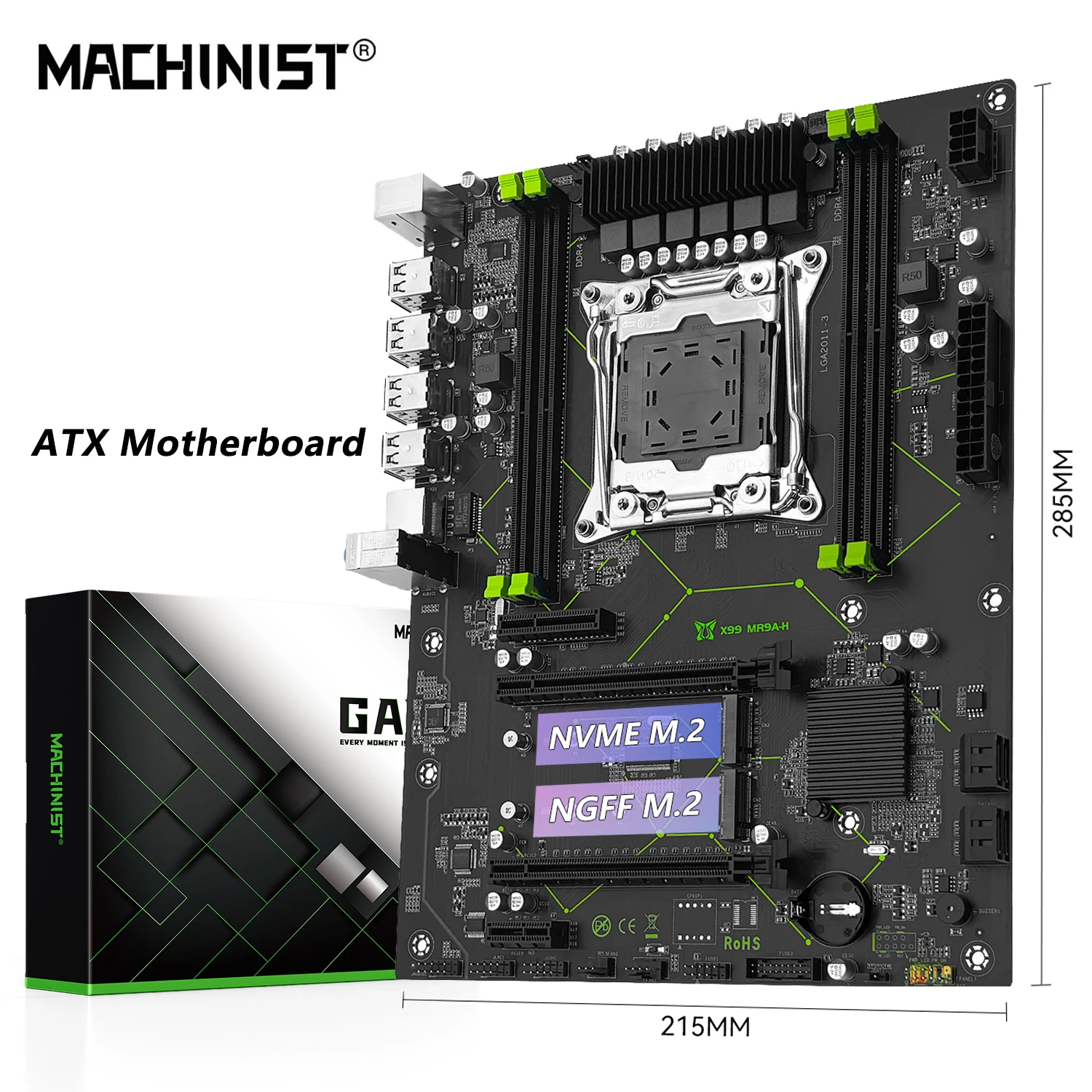

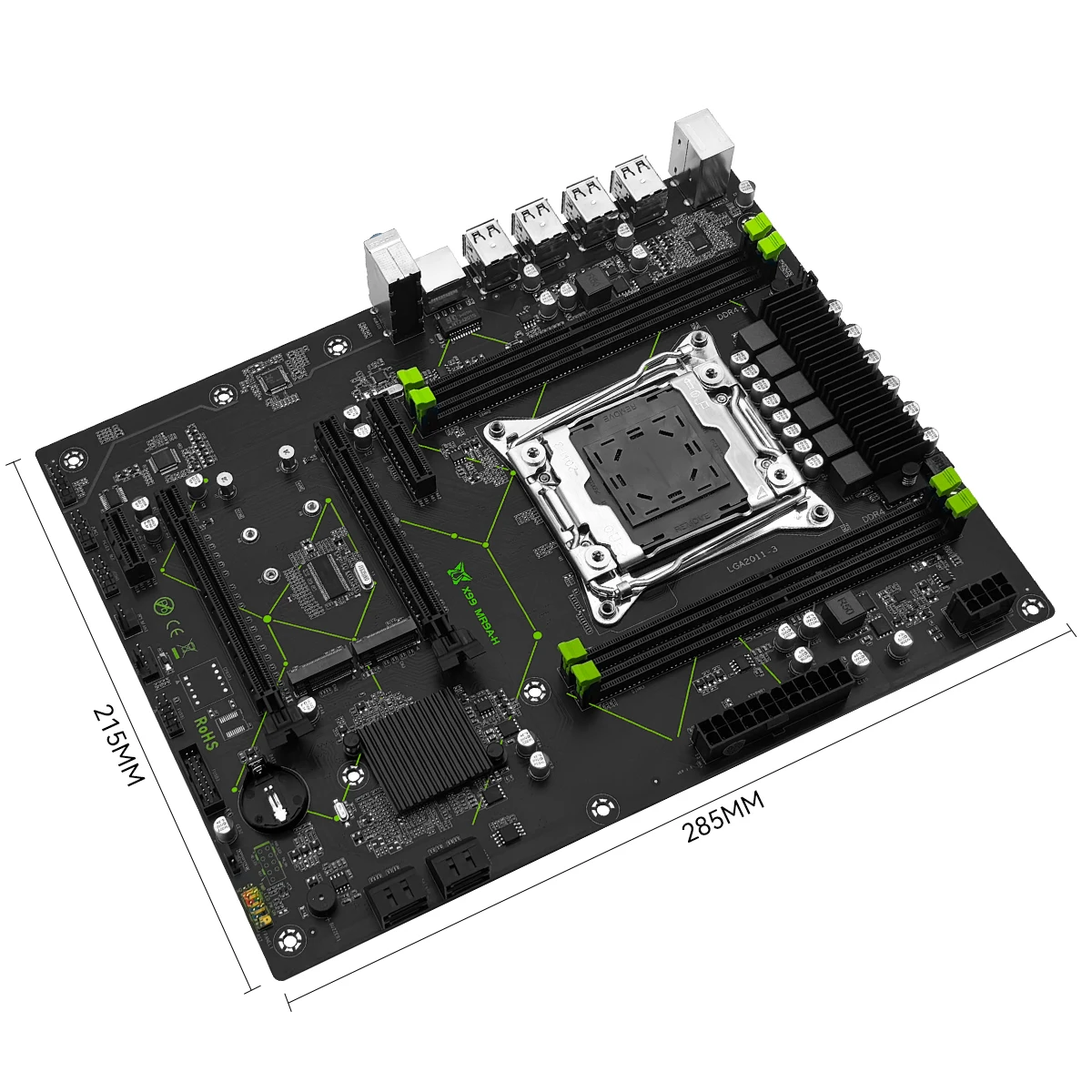

Overall dimensions: 280mm * 215mm.
Motherboard weight (including packaging): about 1.1 kg.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

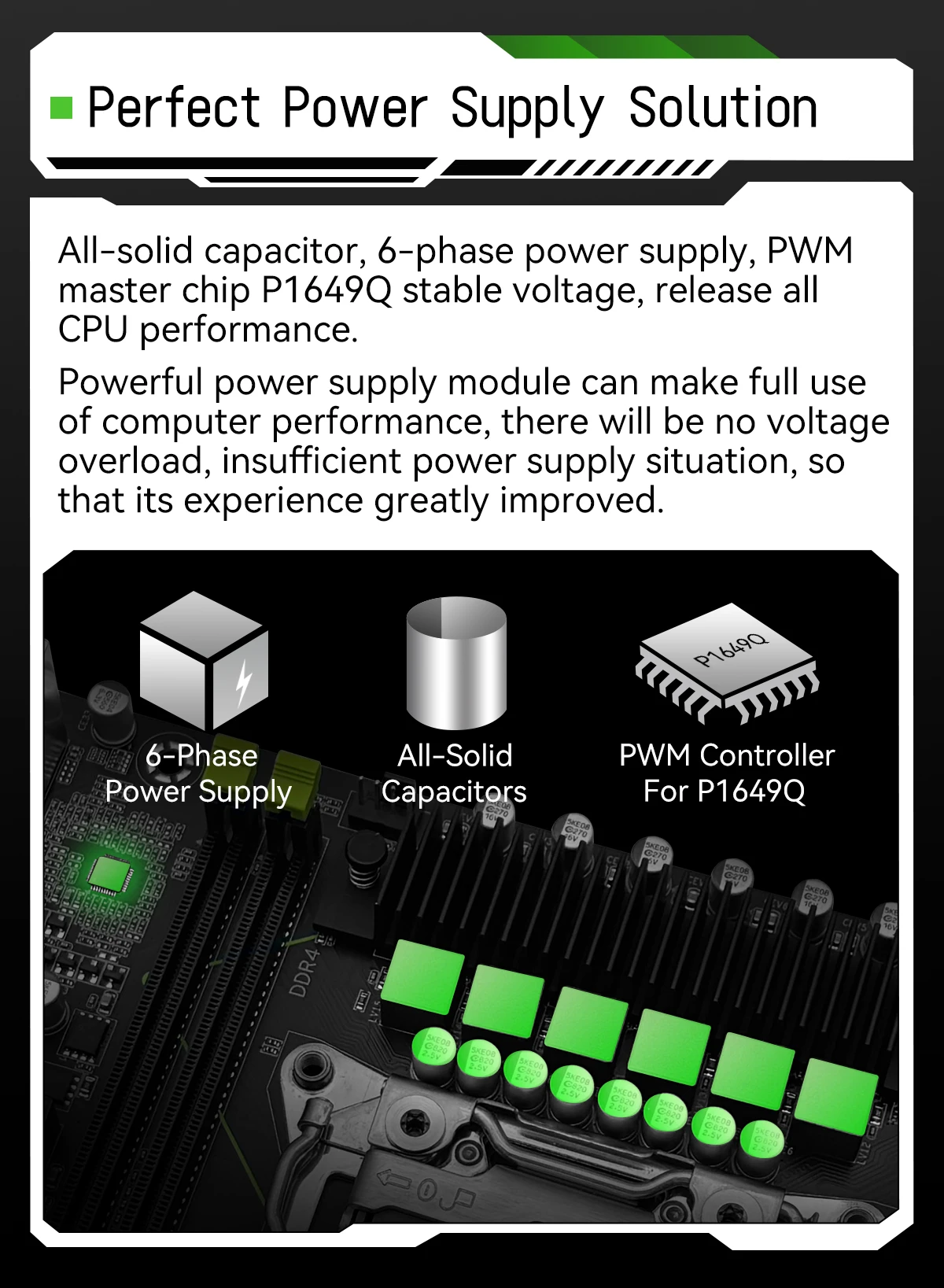

(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
| Weight | 25 kg |
|---|---|
| Dimensions | 5 cm |
| Brand Name | MACHINIST |
| Chipset | Intel Others |
| Onboard LAN | 1x RJ45 |
| Maximum Ram Capacity | 128 GB |
| Processor compatibility | Intel Core |
| With CPU | No |
| Support Memory Type | DDR4 |
| Number of PCI | 0 |
| Storage Interface Type | M.2 (NVMe) |
| Package | Yes |
| RAID Supported | no |
| Application | Desktop |
| Chipset Manufacturer | Intel |
| Back I/O Ports | 3 x Audio Jacks |
| PCI - E standards | PCI – E 3.0 |
| Socket Type | LGA 2011-3 |
| Hign-concerned Chemical | None |
| Special Function | none |
| Usage Scenario | Video Production |
| Origin | Mainland China |
| Number of PCIe x 8 | 0 |
| Number Of Memory Slots | 4 |
| Ports | M.2 |
| Support USB Type | USB 2.0 |
| Number of PCIe x 4 | 1 |
| Number of PCIe x 16 | 2 |
| Onboard Connectors & Header | 4-pin +12V Power Connector |
| Memory channel | Double |
| Number of SATA Ports | 4 |
| SATA RAID | 0 |
| Quality Certification | ROHS |
| Number of PCIe x 1 | 1 |
| Certification | CE |
| Form Factor | ATX |
| Supports M.2 SSD | 2280 |
| Number of M.2 | 2 |
| Choice | yes |
33 reviews for MACHINIST X99 MR9A-H Motherboard Support LGA 2011-3 Xeon E5 V3 V4 CPU Processor DDR4 RAM Memory ATX NVME M.2
Add a review
Related products
Mistery box
Mistery box
J***a –
Product arrived on the scheduled date. I was impressed with the care in the protection of the product. Super recommend the seller
Customer –
I got the machinist game board and it was OK. Easy installation.
T***c –
Came all conform, good board, AGR wait my SSD NVMe M2 to be able to get to do a test using the two slots
B***d –
Plate working normally, for now, I will do more test
J***s –
It’s arrived ok. It arrived perfectly.
g***e –
It arrived, just need to test it.
C***m –
Top motherboard. An excellent construction, finish, design, I was surprised. Super recommend, it remains to carry out tests.
J***o –
It’s all right, working normally. So far. I will test, more and come back if something happens. Excellent computer performance up to goodgood ….
k***a –
top
R***S –
No USB 3.0, but TB is very good, ***** beware X99 mr9a & X99 mr9a-h compare USB 3.0 and TB otherwise mr9a Pro (well superior C/cooler in RVM’s)
R***S –
No USB 3.0, but TB is very good, ***** beware X99 mr9a & X99 mr9a-h compare USB 3.0 and TB otherwise mr9a Pro (well superior C/cooler in RVM’s)
Customer –
Motherboard top…………………………………………………
D***a –
Arrived fast, well packed. I just don’t know if it’s working, I can’t test it at the moment.
A***o –

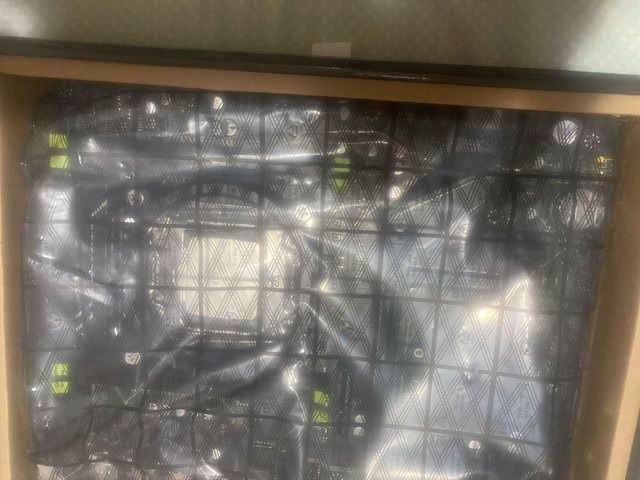

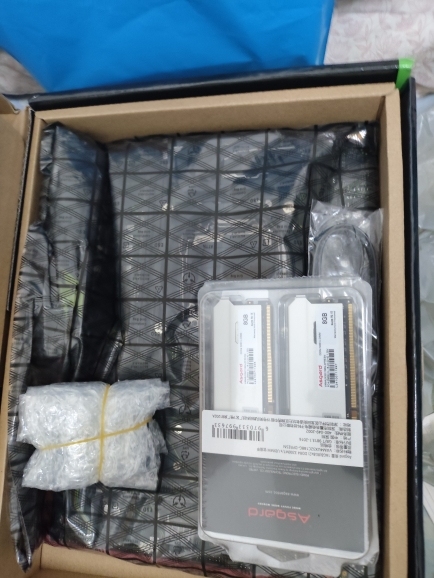

Motherboard arrived packed and in perfect condition. Everything brand new.
A***a –
Motherboard too many Forget Entry for 2 NVMe Well distributed space Quietly wheel the beloved Xeon 2667 V4 with a 4060 I recommend it to everyone Arrived fast too 9 days here at RJ Classes and classes
A***o –
Arrived well packed I am looking forward to assembling the PC I am waiting for the arrival of other hardware.
L***a –
Delivery with 29 days, taxed in 241,00, well packed, small breakdown in the box due to shipping, I will put in tests and return to confirm results!
J***o –
It only turns on with the stack, it works well. More after looking better at the other version that is SATA 3, unless you will only use NVMe
B***l –

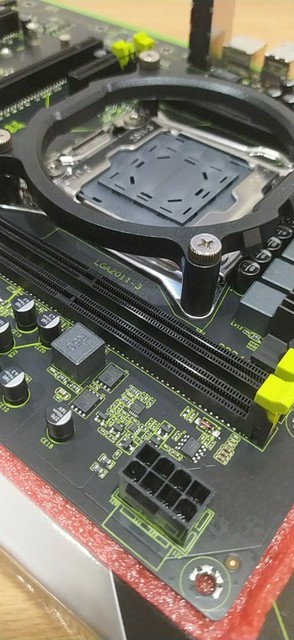

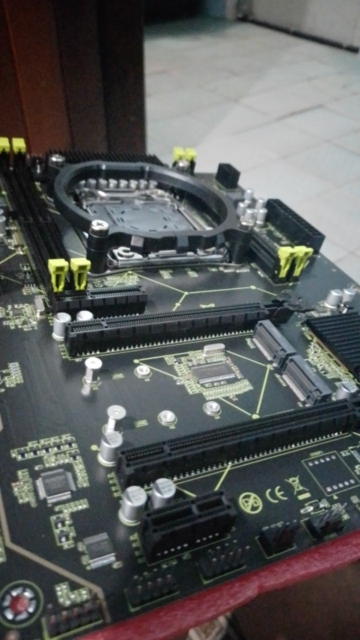

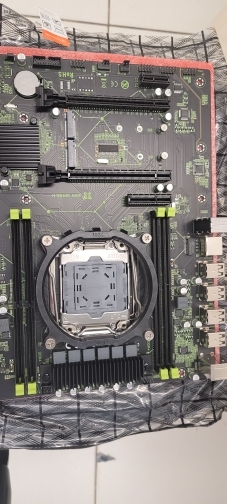

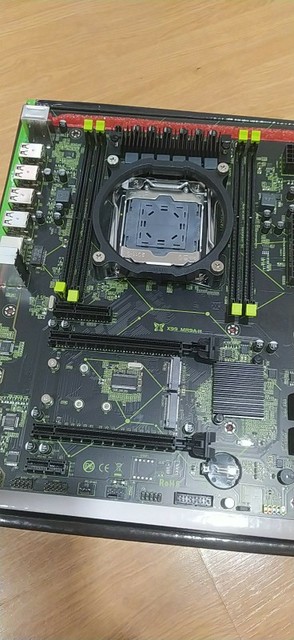

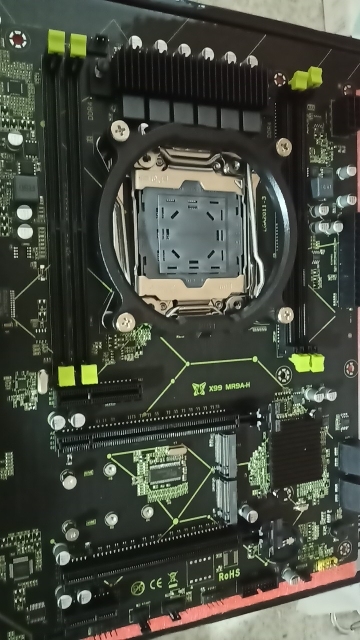

Beautiful board and good construction with VRM sink and 2 NVMe slots. Makes quad channel at 2133MHz. Recommend to use with 2667v4.
